Description
Wimesure offers a comprehensive range of force test stands designed to meet the stringent requirements of the pharmaceutical industry and quality control laboratories. Engineered for both tensile and compression applications, these test benches ensure measurement reliability and repeatability when evaluating materials, packaging, medical devices, or production components.

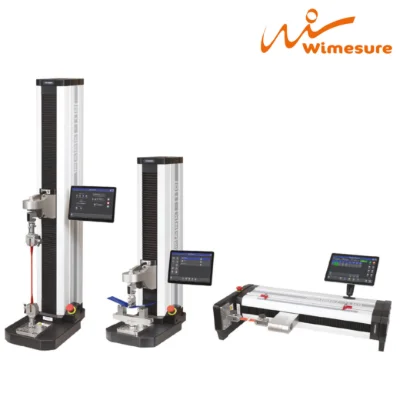

The range includes seven vertical models and one horizontal model, covering forces from 0.5 kN to 6.7 kN, with column travels from 360 to 813 mm and adjustable speeds from 0.02 to 1800 mm/min.
With a sampling rate of 20,000 Hz and a data acquisition frequency of 1,000 Hz, these systems guarantee a speed accuracy of ±0.2% of the set value, regardless of the applied load — a key asset for tests requiring full traceability and reproducibility in compliance with regulatory standards.
The intelliMESUR® series enables multi-step testing such as pull-off, elongation, load holding, 90° peel, bending, and break tests. The integrated software, accessible directly through a 10.1’’ touchscreen tablet, provides an intuitive interface for configuring tests, viewing real-time results, generating lab-compliant reports, and storing or exporting data.
A wide range of accessories is available, including specific grip sets, column extensions, and operator safety shields, ensuring optimal adaptation to every application and strict compliance with pharmaceutical safety and quality protocols.
